Getting familiar with PyTorch data structures (codes included)

Utpal Kumar   4 minute read
   visitor badge

In this introduction to the concepts of Pytorch data structures, we will learn about how to create and reshape tensors using Pytorch and compare it with the Numpy data structures.

PyTorch is a popular Python library for deep learning. We will learn the basics of Pytorch and Pytorch tensor a, how to create it, and perform some operations.

A tensor can be thought of as a generalized matrix. So, we can have a 1-D, 2D, or N-dimensional matrix. We generally call them scalar (single number), vector (1-D array), matrix (2-D array), and then higher ones can be simply called a tensor.

If you have done some theoretical mathematics, then you must be aware that tensors are an easy expression of our dataset and we don’t need to design our equations around the dimensions. Similarly, in data science, if we use tensors then we can use our code for the single number, matrix, or complex data forms such as image data.

Tensors in PyTorch
Tensors in PyTorch

Import PyTorch and Numpy

Let us start by importing the libraries:

import torch
import numpy as np
print(torch.__version__)
1.1.0

The last command is to check the installation of PyTorch in the current environment.

Creating a tensor

Now, let us create a Numpy array to obtain the Tensor object.

myarr = np.arange(1,6)
print(myarr)
print(myarr.dtype)
print(type(myarr))
[1 2 3 4 5]
int64
<class 'numpy.ndarray'>

If we want to convert the Numpy array to tensor, we do

tt = torch.from_numpy(myarr)
print(tt)
print(tt.type())
tensor([1, 2, 3, 4, 5])

torch.LongTensor

This one will create a link between the original (myarr) and tt. The better way to create an array will be

tt = torch.tensor(myarr)
print(tt)
print(tt.type())
tensor([1, 2, 3, 4, 5])
torch.LongTensor

Now, let us create a 2D tensor:

my2darr = np.arange(0.,12.).reshape(4,3) #get a numpy array and reshape it to obtain 2d
print(my2darr)
tt2 = torch.tensor(my2darr)
print(tt2)
print(tt2.type())
[[ 0.  1.  2.]
 [ 3.  4.  5.]
 [ 6.  7.  8.]
 [ 9. 10. 11.]]

tensor([[ 0.,  1.,  2.],
        [ 3.,  4.,  5.],
        [ 6.,  7.,  8.],
        [ 9., 10., 11.]], dtype=torch.float64)

torch.DoubleTensor

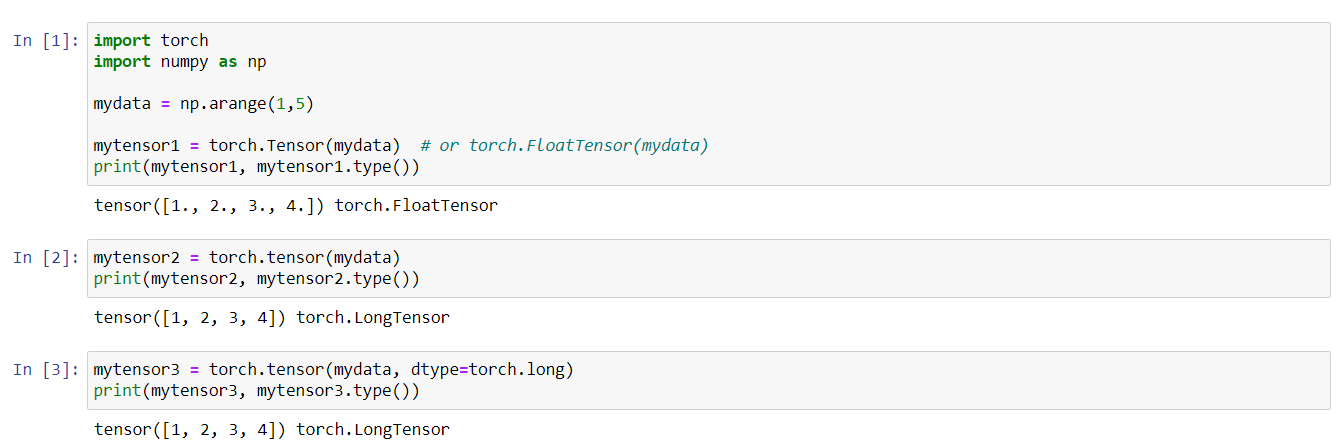

Three main ways of defining Tensor in PyTorch

mydata = np.arange(1,5)

mytensor1 = torch.Tensor(mydata)  # Equivalent to cc = torch.FloatTensor(data)
print(mytensor1, mytensor1.type())
tensor([1., 2., 3., 4.]) torch.FloatTensor
mytensor2 = torch.tensor(mydata)
print(mytensor2, mytensor2.type())

tensor([1, 2, 3, 4]) torch.LongTensor
mytensor3 = torch.tensor(mydata, dtype=torch.long)
print(mytensor3, mytensor3.type())
tensor([1, 2, 3, 4]) torch.LongTensor
Create different tensors in Pytorch
Create different tensors in Pytorch

Common Numpy methods are available


## Random Numbers
x = torch.rand(4, 3)
print(x)

x = torch.randn(4, 3)
print(x)

x = torch.randint(0, 5, (4, 3))
print(x)

x = torch.empty(4, 3)
print(x)


## Initialization
x = torch.zeros(2,5)
print(x)
tensor([[0.2137, 0.1635, 0.0262],
        [0.5090, 0.6493, 0.2037],
        [0.3697, 0.9471, 0.7771],
        [0.1593, 0.9452, 0.0312]])

tensor([[-0.8143, -2.0780,  0.5173],
        [ 0.1504, -0.2943,  0.4080],
        [ 1.0094,  1.9406,  0.5446],
        [ 0.2792, -1.6270, -0.4240]])

tensor([[3, 1, 2],
        [4, 1, 3],
        [0, 1, 4],
        [1, 4, 4]])

tensor([[7.1664e-10, 4.5630e-41, 4.4871e+20],
        [3.0938e-41, 0.0000e+00, 0.0000e+00],
        [0.0000e+00, 0.0000e+00, 0.0000e+00],
        [0.0000e+00, 1.8788e+31, 1.7220e+22]])

tensor([[0., 0., 0., 0., 0.],
        [0., 0., 0., 0., 0.]])

We can also define random number seed just like numpy:

torch.manual_seed(42)
x = torch.rand(2, 3)
print(x)

print(x.shape)
tensor([[0.8823, 0.9150, 0.3829],
        [0.9593, 0.3904, 0.6009]])

PyTorch uses multiple devices


print(x.device) #'cpu' or 'cuda'

PyTorch is able to harness the power of GPUs in addition to the CPU. For details, check here.

PyTorch Object Memory Layout

x = torch.Tensor([[1, 2, 3, 4, 5], [6, 7, 8, 9, 10]])
print(x.layout) #strided as default
torch.strided

Currently, PyTorch support torch.strided (dense Tensors) and have beta support for torch.sparse_coo (sparse COO Tensors).

View or Reshape

x = torch.linspace(1,5, 10)
print(x)
print(x.view(2,5))
print(x)
print(x.reshape(2,5))
print(x)
tensor([1.0000, 1.4444, 1.8889, 2.3333, 2.7778, 3.2222, 3.6667, 4.1111, 4.5556,
        5.0000])

tensor([[1.0000, 1.4444, 1.8889, 2.3333, 2.7778],
        [3.2222, 3.6667, 4.1111, 4.5556, 5.0000]])

tensor([1.0000, 1.4444, 1.8889, 2.3333, 2.7778, 3.2222, 3.6667, 4.1111, 4.5556,
        5.0000])

tensor([[1.0000, 1.4444, 1.8889, 2.3333, 2.7778],
        [3.2222, 3.6667, 4.1111, 4.5556, 5.0000]])

tensor([1.0000, 1.4444, 1.8889, 2.3333, 2.7778, 3.2222, 3.6667, 4.1111, 4.5556,
        5.0000])

View method do not changes the original tensor. This is similar to the reshape method. View method has been in PyTorch for a long time and reshape have been added recently.

The main thing we need to care about is whether we modify the original tensor. But we ensure that we alter the original by using the reassignment.

## With reshape
x = torch.linspace(1,5, 10)
print(x)
x = x.reshape(2,5)
print(x)
tensor([1.0000, 1.4444, 1.8889, 2.3333, 2.7778, 3.2222, 3.6667, 4.1111, 4.5556,
        5.0000])

tensor([[1.0000, 1.4444, 1.8889, 2.3333, 2.7778],
        [3.2222, 3.6667, 4.1111, 4.5556, 5.0000]])
## With view
x = torch.linspace(1,5, 10)
print(x)
x = x.view(2,5)
print(x)
tensor([1.0000, 1.4444, 1.8889, 2.3333, 2.7778, 3.2222, 3.6667, 4.1111, 4.5556,
        5.0000])

tensor([[1.0000, 1.4444, 1.8889, 2.3333, 2.7778],
        [3.2222, 3.6667, 4.1111, 4.5556, 5.0000]])
x = torch.linspace(1,5, 10)
print(x)
z = x.view(2,5)
x[0]=234
print(z) #z changed
print(x) #x changed
tensor([1.0000, 1.4444, 1.8889, 2.3333, 2.7778, 3.2222, 3.6667, 4.1111, 4.5556,
        5.0000])

tensor([[234.0000,   1.4444,   1.8889,   2.3333,   2.7778],
        [  3.2222,   3.6667,   4.1111,   4.5556,   5.0000]])

tensor([234.0000,   1.4444,   1.8889,   2.3333,   2.7778,   3.2222,   3.6667,
          4.1111,   4.5556,   5.0000])

From the above code, we can see that view (also reshape) does not generate a copy of the array but point to the original array. This can be a convenience or inconvenience depending on the usage.


Arithmetic with tensors

a = torch.tensor([1,2,3], dtype=torch.float)
b = torch.tensor([4,5,6], dtype=torch.float)
print(a + b)
print(torch.add(a, b))
tensor([5., 7., 9.])

tensor([5., 7., 9.])

We can also output the result into predefined tensor:

result = torch.empty(3)
torch.add(a, b, out=result)
print(result)
tensor([5., 7., 9.])

We can also compute the dot product using the dot method:

a = torch.tensor([1,2,3], dtype=torch.float)
b = torch.tensor([4,5,6], dtype=torch.float)
print(a, b)
print(a.mul(b))

print(a.dot(b))
tensor([1., 2., 3.]) tensor([4., 5., 6.])

tensor([ 4., 10., 18.])

tensor(32.)

Unlike numpy dot method, tThe Pytorch dot method only accepts the 1D array. For higher dimensional tensor array, we can do the matrix multiplication:


a = torch.tensor([[0,2,4],[1,3,5]], dtype=torch.float)
b = torch.tensor([[6,7],[8,9],[10,11]], dtype=torch.float)
print(a)
print(b)

print('a: ',a.shape)
print('b: ',b.shape)

print(torch.mm(a,b)) #also a @ b or a.mm(b)

print('a x b: ',torch.mm(a,b).shape)
tensor([[0., 2., 4.],
        [1., 3., 5.]])

tensor([[ 6.,  7.],
        [ 8.,  9.],
        [10., 11.]])

a:  torch.Size([2, 3])

b:  torch.Size([3, 2])

tensor([[56., 62.],
        [80., 89.]])

a x b:  torch.Size([2, 2])
