How to set up SSH-Keys for Github

While using Github, you may have noticed that using username and password for making commits and pushing repos do not work anymore. This is because Github no longer accepts password authentication for the security reasons. Github recommends to use token-based authentication instead. There are a few different options for that - SSH Keys, Personal Access Key, OAuth. In this post, I will cover how to set up SSH Keys for the github authentication.

SSH-Key

When we create a ssh-key on a machine, it uniquely identifies the machine. After sharing this identity with Github, it can trust the machine and allows to do operations (such as commit, push, clone, etc). This is very handy for security reasons. When our computer gets stolen, we can revoke that ssh key. Also, github revokes inactive keys after one year.

Next, we will see how to set up the SSH Key on our computer and share it with Github.

How to create private and public ssh keys

We will see how we can create both private and public ssh keys. The private key is for the machine and must not be shared with anyone in any case. The public key is designed to be shared and this is what we will share with the Github.

Generate a key

ssh-keygen -t ed25519 -C myemail@gmail.com

Here, we use ssh-keygen to generate key, ed25519 is the type of encryption for the key, and myemail@gmail.com is the email associated with the key.

When you execute this command, you will be prompted for the location of the key (you can go with the default), and the extra layer of passphrase (you can chose to leave it empty).

$ ssh-keygen -t ed25519 -C myemail@gmail.com
 config
Generating public/private ed25519 key pair.
Enter file in which to save the key (/mymachinepath/.ssh/id_ed25519):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /mymachinepath/.ssh/id_ed25519.
Your public key has been saved in /mymachinepath/.ssh/id_ed25519.pub.
The key fingerprint is:
SHA256:OTG86YNFSApYGfumdklUdTqN0w9zLKRQS3BU myemail@gmail.com
The key's randomart image is:
+--[ED25519 256]--+
|                 |
|                 |
|                 |
|                 |
|                 |
|                 |
|                 |
|                 |
|                 |
+----[SHA256]-----+

Note that the above output has been edited for security reasons.

Add private key to the ssh-agent

First, we need to start the agent:

eval "$(ssh-agent -s)"

Then, we can create/edit the config file

touch ~/.ssh/config

We need to add following lines to the ~/.ssh/config file:

Host *
  AddKeysToAgent yes
  IdentityFile ~/.ssh/id_ed25519

The last part is to run the ssh-add command:

ssh-add ~/.ssh/id_ed25519

Add ssh public key to GitHub

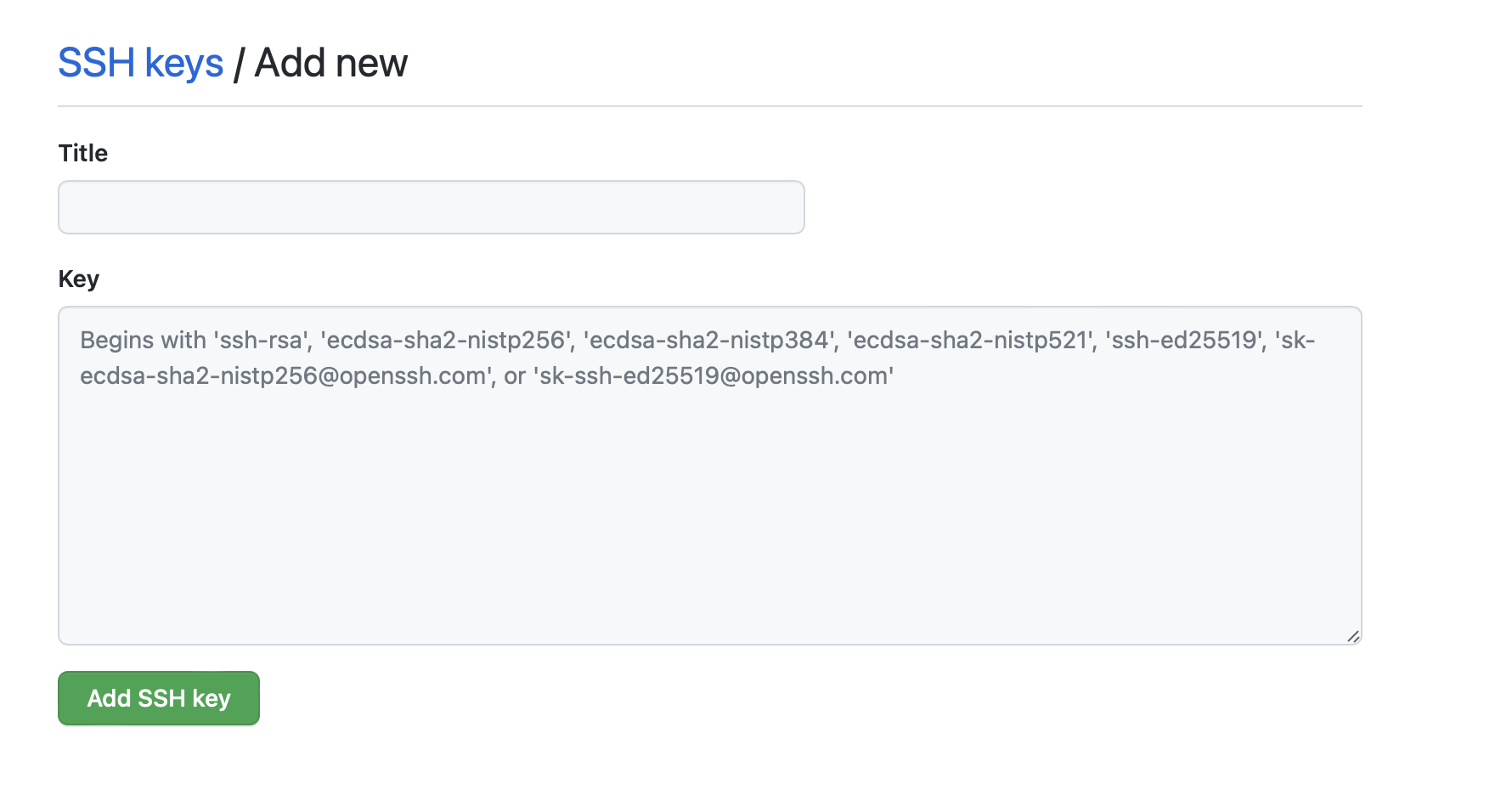

On Github, go to Settings and then SSH and GPG keys: Github keys Next, click on the New SSH key button to create a new key.

Copy the contents of ~/.ssh/id_ed25519.pub file and paste it in the key box.

cat ~/.ssh/id_ed25519.pub

That’s it. Now, you have SSH-Keys set up for your machine.

Authenticate the setup

You can authenticate the setup by running this command on your machine.

ssh -T git@github.com

Clone a repo using ssh

You can now easily clone your repo without getting the prompts for the username and passwords. For example:

git clone git@github.com:earthinversion/SystemMonitorApp.git

Notice the git@github.com: in the front of the url for cloning using ssh.

Recap

Without scrolling up — can you summarize the setup?

• Generate an ed25519 key pair with ssh-keygen,
• Load the private key into the ssh-agent (and reference it in ~/.ssh/config),
• Upload the public key (id_ed25519.pub) to GitHub → Settings → SSH and GPG keys,
• Test with ssh -T git@github.com, then clone/push over the git@github.com: URL — no passwords.

The private key never leaves your machine; that asymmetry is the whole security model.

References

1. Connecting to GitHub with SSH — GitHub’s official documentation.
